High Temperature Forward Bias (HTFB) Test

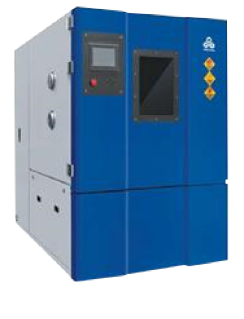

Equipment: Thermal Chamber-MSK-1050PR

Working Principle

  • The polarity of the voltage dropped across the diode
  • High temperature and forward bias stress the DUT
  • Forward voltage for a diode varies slightly for changes in forward current and temperature
  • 150 °C
  • Standard: JESD108D

Technical Information

  • Temperature variation effects on current of Schottky diode
  • Measure barrier height and electron mobility
  • Draw a comprehensive IV curve

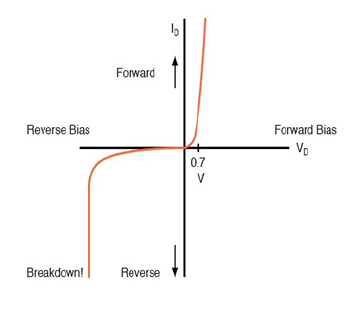

IV Curve of Forward/Reverse Bias
