Circuit Extraction
Overview
Our Circuit Extraction Service for various devices is tailored to meet the needs of development teams and IT litigation customers in the high-tech industry. By offering comprehensive solutions for extracting, analyzing, and understanding complex electronic circuits embedded within these devices, we empower clients to innovate, validate, and defend their intellectual property.
Our Circuit Extraction Service covers a wide range of circuit types found in various devices, including memory, network, SoC (System on Chip), and CIS (CMOS Image Sensor). We specialize in extracting, analyzing, and understanding the intricate circuit architectures embedded within these devices, providing invaluable insights into their operation, organization, and functionality. From memory arrays and network processors to SoC integration and CIS imaging pipelines, our comprehensive service caters to the diverse needs of development and IT litigation customers, supporting innovation, validation, and protection of intellectual property across the high-tech industry.
Our Circuit Extraction Service offers a multitude of benefits for development and IT litigation customers. It provides robust intellectual property protection by safeguarding proprietary circuit designs and confidential information. Additionally, our service supports development teams in validating design concepts, optimizing circuit performance, and accelerating product development cycles. For clients involved in IT litigation cases, our detailed circuit analysis and documentation serve as valuable evidence, supporting effective litigation strategies and resolutions. Moreover, our insights enable technology analysis, benchmarking, and informed decision-making, empowering clients to stay competitive in the dynamic high-tech landscape. Furthermore, our service is known for its relative speed and affordability compared to the industry standard, ensuring efficient and cost-effective solutions for our customers.
Circuit Extraction Service for various devices is essential for development and litigation customers in the high-tech industry. Our comprehensive solutions for extracting, analyzing, and understanding complex circuit architectures empower clients to innovate, validate, and protect their intellectual property effectively.
Services
- Identification of target circuit area
- Optical and SEM imaging of layers with various magnifications

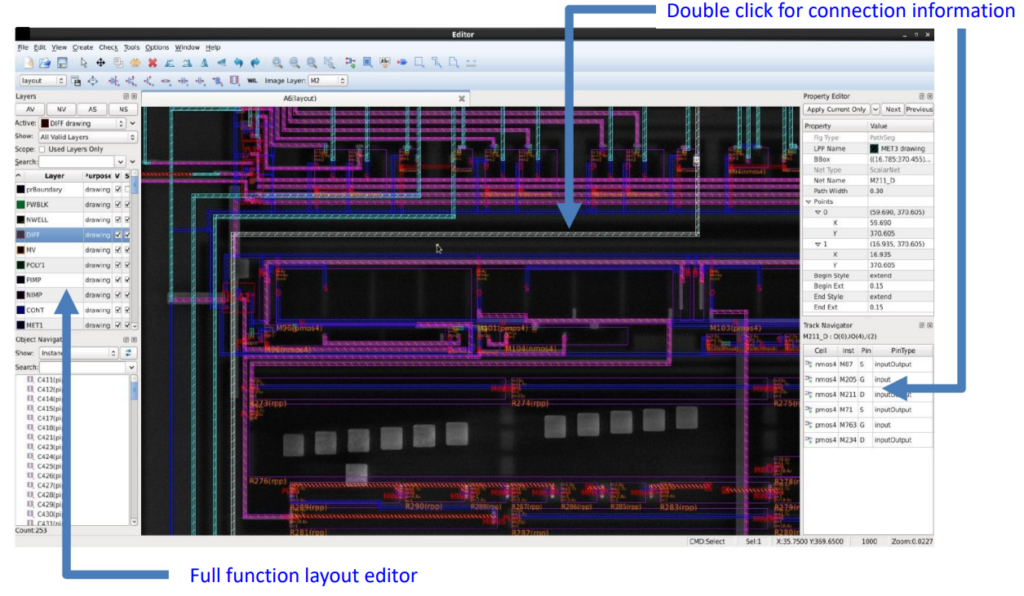

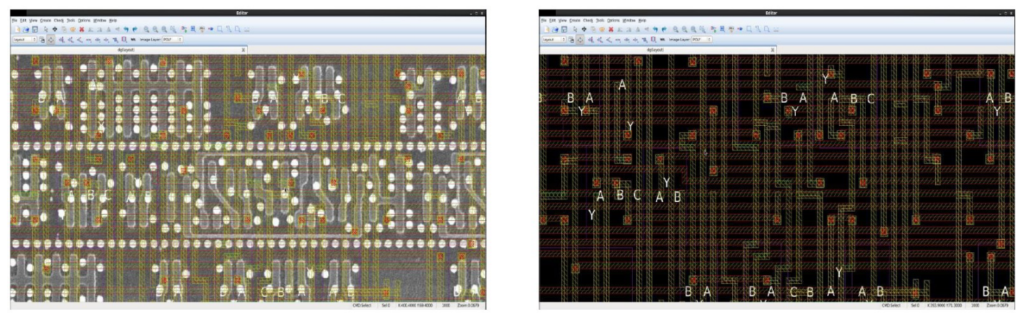

- Layout extraction

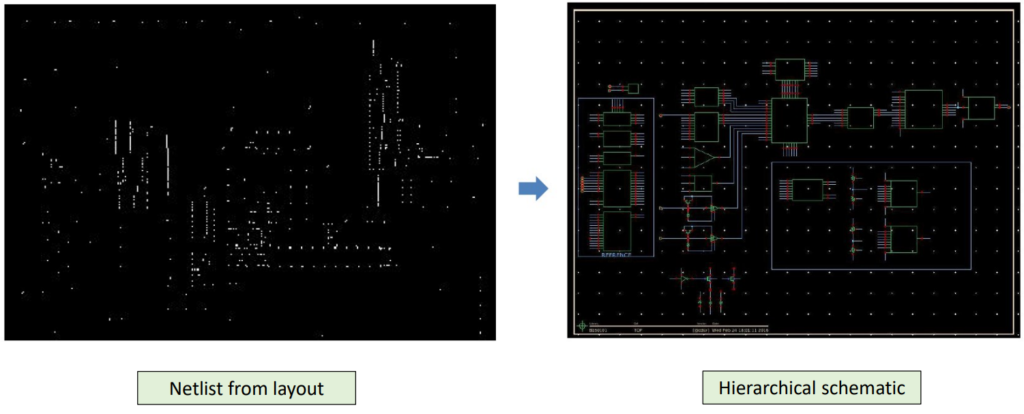

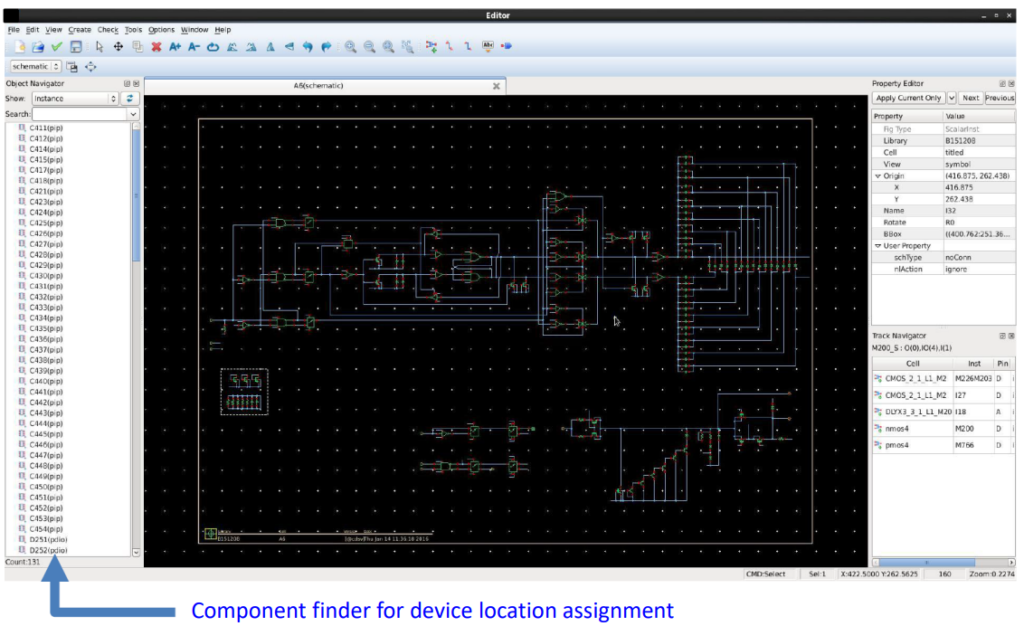

- Netlist generation
- Device Characterization
- Functional verification
- Consultation with domain experts
Pricing
- Please contact us with the details of your project for consultation and pricing.
FAQ
A: Circuit extraction is the process of extracting the layout, components, and interconnections of electronic circuits embedded within IC devices. It is important for reverse engineering, failure analysis, intellectual property protection, and technology assessment in the semiconductor industry.
A: Circuit extraction can be applied to various types of IC devices, including memory chips, microprocessors, network processors, system-on-chip (SoC) devices, CMOS image sensors (CIS), and more.

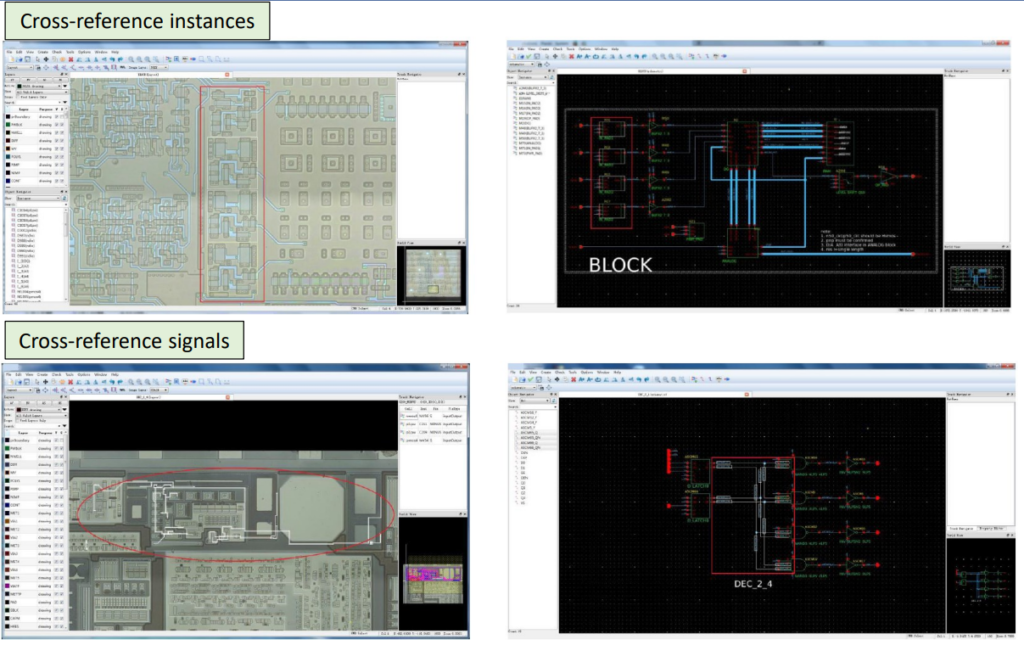

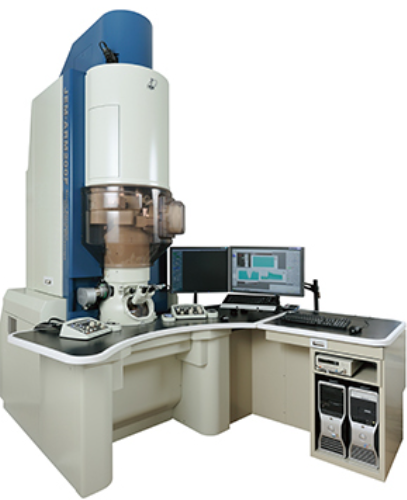

A: Circuit extraction typically involves a combination of imaging, analysis, and modeling techniques. Advanced microscopy tools, such as scanning electron microscopes (SEM) and focused ion beam (FIB) systems, are used to capture high-resolution images and analyze the layout of the IC device. Software tools are then used to interpret the images and generate circuit schematics or netlists.
A: Circuit extraction provides insights into the physical layout, components, interconnections, and functionality of the electronic circuits within IC devices. This information is valuable for understanding the device’s operation, diagnosing faults, optimizing performance, and assessing design integrity.
A: Circuit extraction is used for a variety of applications, including reverse engineering of competitor’s products, identification of intellectual property infringement, failure analysis, quality control, device characterization, and technology assessment.
A: Yes, circuit extraction is an essential tool for protecting intellectual property rights in the semiconductor industry. By analyzing and documenting the circuitry of proprietary devices, companies can assert their ownership and defend against infringement claims.
A: Challenges include the complexity of modern IC designs, the miniaturization of circuit components, the presence of multiple layers of interconnects, and the need for specialized equipment and expertise. Additionally, the process may be time-consuming and require careful validation to ensure accuracy.
A: Circuit extraction can be both destructive and non-destructive, depending on the techniques and tools used. Non-destructive methods, such as optical imaging and scanning electron microscopy, preserve the integrity of the IC device, while destructive methods, such as chemical etching, may alter or damage the device.
A: The time required for circuit extraction depends on factors such as the complexity of the device, the availability of equipment and resources, and the specific requirements of the analysis. It can range from several weeks to months for more complex devices.
A: Limitations include the inability to extract certain types of circuit components or structures, limitations in resolution and accuracy of imaging techniques, and the need for specialized expertise and equipment. Additionally, circuit extraction may not always provide complete or conclusive information, especially in highly integrated or proprietary designs.
